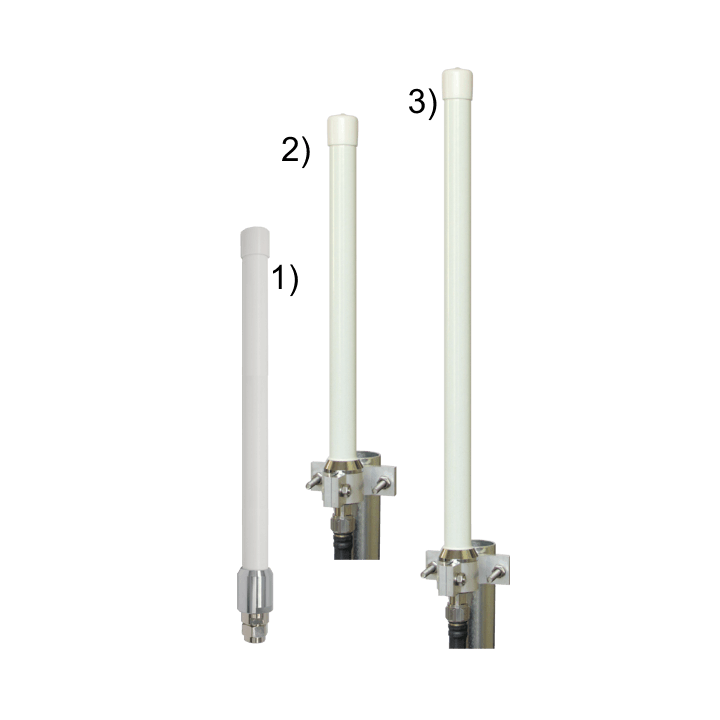

SIRIO SCO-2.4-6 ANTENA BASE 2,4 GHz (3 X 1/2) 6 dBi

59,00 €

Impuestos incluidos

ANTENA SIRIO BASE 2,4 GHz

Fuera de stock

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

Antena SIRIO SCO-2.4-6 PARA BASE 2,4 Ghz 6 Dbi 3 x 1/2

SIRIO SCO-2.4-6 ANTENA BASE 2,4 GHz (3 X 1/2) 6 dBi

Product Number:

Electrical Data:

Type:	SCO 2.4-6: 3×1/2 λ colinear SCO 2.4-9: 7×1/2 λ colinear
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	SCO-2.4-6 N-m: 2.3-2.5 GHz @ SWR ≤ 1.5 No tuning required SCO-2.4-6 N-f: 2.3-2.5 GHz @ SWR ≤ 1.5 No tuning required SCO-2.4-9 N-f: 2.4-2.485 GHz @ SWR ≤ 1.5 No tuning required
Systems:	WiFi-2.4GHz
Gain:	SCO 2.4-6: 3.9 dBd – 6 dBi SCO 2.4-9: 6.9 dBd – 9 dBi
Max Power:	20 W (CW)
Grounding protection:	DC-Ground
Connector:	SCO-2.4-6 N-m: N-male SCO-2.4-6 N-f: N-female SCO-2.4-9 N-f: N-female

Mechanical Data:

Materials:	Aluminium, Chromed brass, Stainless steel, Fiberglass, PCB
Height (approx):	SCO-2.4-6 N-m: 325 mm / 1.07 ft SCO-2.4-6 N-f: 325 mm / 1.07 ft SCO-2.4-9 N-f: 630 mm / 2.07 ft
Weight (approx):	SCO-2.4-6 N-m: 350 gr / 0.77 lb SCO-2.4-6 N-f: 350 gr / 0.77 lb SCO-2.4-9 N-f: 415 gr / 0.91 lb
Mounting type:	SCO-2.4-6 N-m: On-Connector SCO-2.4-6 N-f: On-Mast SCO-2.4-9 N-f: On-Mast
