SIRIO HP2070 R ANTENA MOVIL VHF/UHF 1000cm

47,00 €

Impuestos incluidos

Antena SIRIO DOBLE BANDA

Fuera de stock

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

SIRIO HP 2070 R

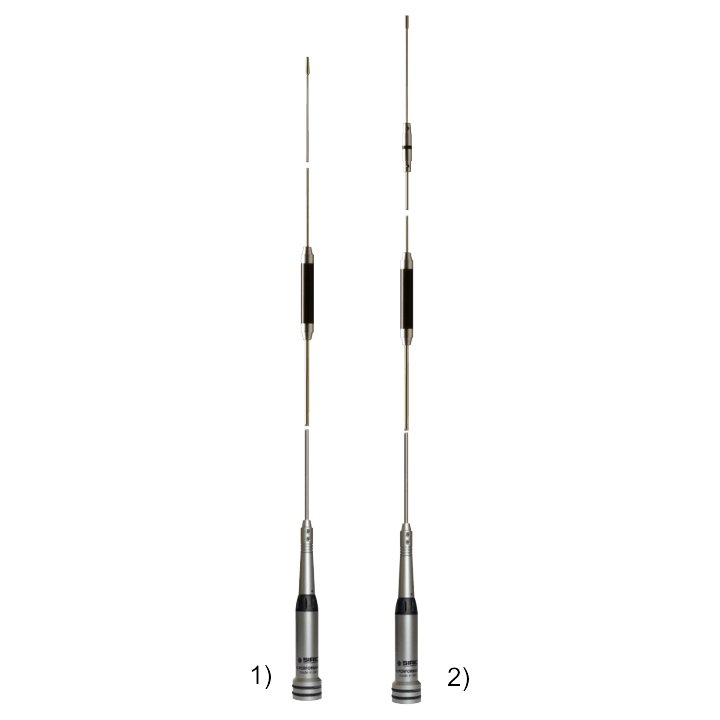

FOTOS:

1) HP 2070 R

2) HP 2070 H

Features:

Available Version for USA ham band (146 & 445 MHz)

Product Number:

P/N: 2210405.05	HP 2070 H
P/N: 2210705.05	HP 2070 R

Electrical Data:

Type:	VHF: 1/2 λ UHF: 2 x 5/8 λ Colinear
	Ground plane independent
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	VHF: 142-148 MHz UHF: 430-440 MHz
Systems:	2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA
Gain:	HP 2070 H: VHF 0.7 dB UHF 4.4 dB ref. to a λ/4 whip HP 2070 R: VHF 0.6 dB UHF 4.6 dB ref. to a λ/4 whip
Max Power:	VHF: 150 W (CW) UHF: 100 W (CW)
Grounding protection:	DC-Ground

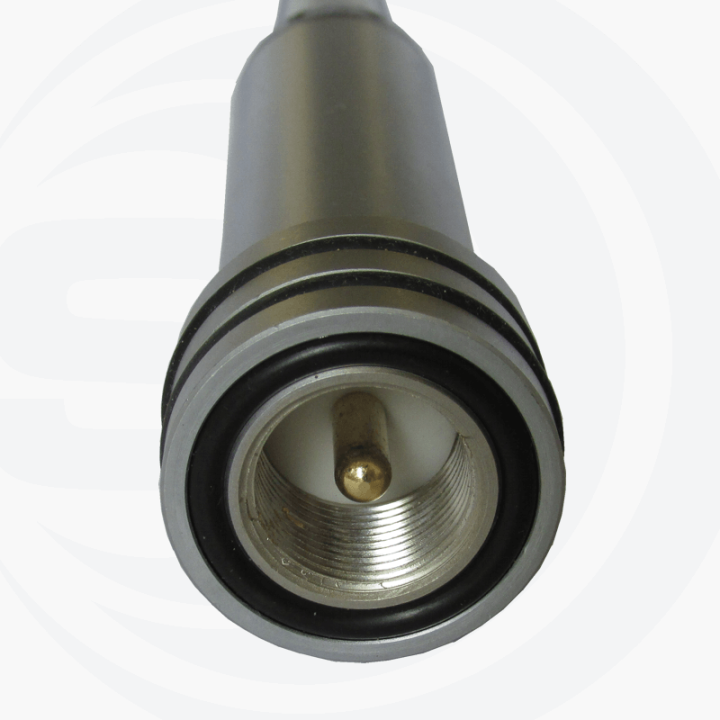

Connector:	UHF-male (PL-259)

Mechanical Data:

Materials:	Brass, Stainless Steel 17/7 PH, Nylon
Height (approx):	HP 2070 H: 1080 mm / 3.54 ft HP 2070 R: 1000 mm / 3.28 ft
Weight (approx):	HP 2070 H: 330 gr / 0.73 lb HP 2070 R: 300 gr / 0.66 lb
Mounting type:	On-Connector
