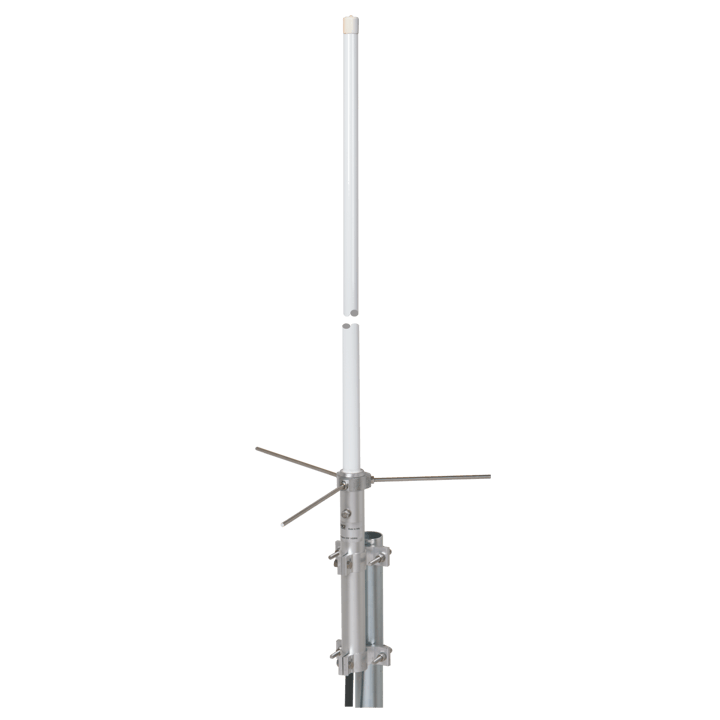

SIRIO SA270MN ANTENA BASE VHF/UHF 144/432 MHz 1800mm.

SIRIO SA270MN ANTENA BASE VHF/UHF 144/432 MHz 1800mm.

Name: SIRIO SA270MN ANTENA BASE VHF/UHF 144/432 MHz 1800mm.
Brand: ELECTRONICA BARCELO
SKU: SA270MN
Price: 95 EUR
Availability: InStock

95,00 €

Impuestos incluidos

Antena base omnidireccional bibanda VHF-UHF. Encapsulada en fibra de vidrio. Ganancia VHF: 4.15 dBi - UHF: 6.35 dBi. Potencia aplicable hasta 200 Watt. Longitud 1.72m. Conector N Hembra en la base (HQ). Incluye soporte a mástil y tornillería.

SIRIO SA 270 MN

Antena base omnidireccional bibanda VHF-UHF

Antena base omnidireccional bibanda VHF-UHF. Encapsulada en fibra de vidrio. Ganancia VHF: 4.15 dBi - UHF: 6.35 dBi. Potencia aplicable hasta 200 Watt. Longitud 1.72m. Conector N Hembra en la base (HQ). Incluye soporte a mástil y tornillería.

Features:

Available version for USA ham band (146 & 445 MHz).

UPGRADE: new and strongest cylindrical fiberglass tube

Product Number:

P/N: 2103420.00

SA 270 MN

Electrical Data:

Type:	VHF: 6/8 λ UHF: 3 x 5/8 λ colinear
Radiation:	Omnidirectional
Polarization:	Linear vertical
Frequency range:	142-148 MHz & 427-442 MHz No tuning required
Systems:	2m-HAM, 70cm-HAM, ORBCOMM M2M, TETRA, CDMA-450, ISM/SIGFOX/LoRa 433MHz
Gain:	VHF: 2 dBd – 4.15 dBi UHF: 4.2 dBd – 6.35 dBi
Max Power:	200W
Grounding protection:	All metal parts are DC-grounded, the inner conductor is coupled capacitively

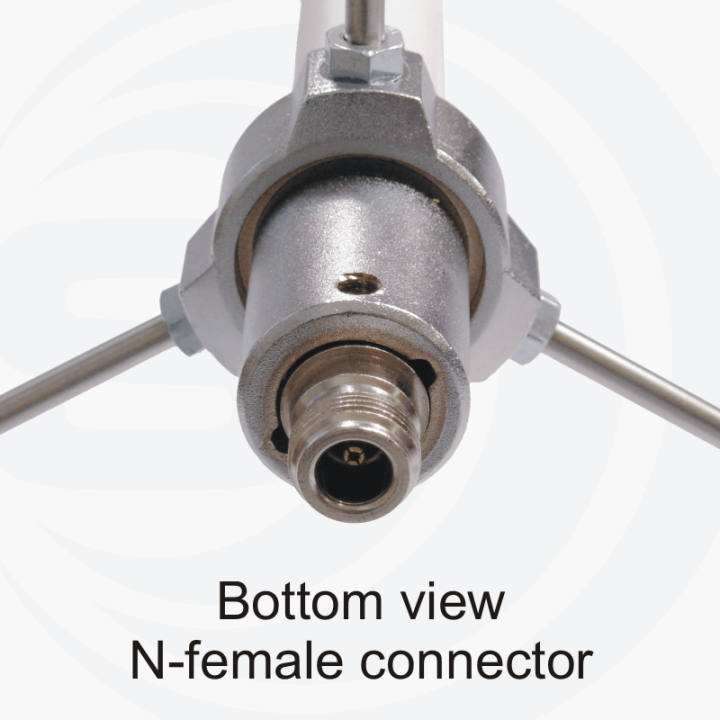

Connector:	N-female

Mechanical Data:

Materials:	Aluminium, Chromed brass, Stainless steel, Fiberglass
Height (approx):	1720 mm / 5.64 ft
Weight (approx):	1030 gr / 2.27 lb
Mounting type:	On-Mast
